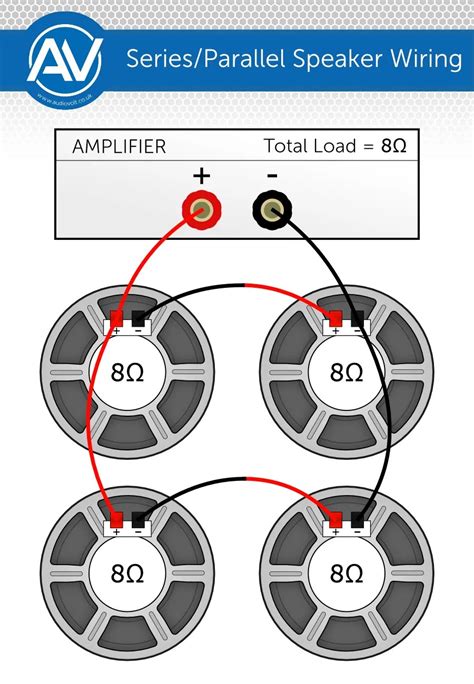

Series Parallel Speaker Wiring Diagram. Web there are two ways you can wire a 4×12 (or 4×10 for that matter), the main one is series/parallel: 4 x 8 ohm speaker = 8 ohm load;
series and parallel speaker wiring from schematic99.storage.googleapis.com
This tool handles that part for you. One of the most commonly used methods. Web 4 rows november 1, 2022.
Web Guitar Speakers Explained | The Basics, Series & Parallel Wiring 9/30/2013 3 Comments Voltage, Current, Impedance Of Guitar Speakers In This Article I.
This diagram will provide some examples to help illustrate why this is true. This tool handles that part for you. Power = (voltage x voltage) / resistance p = v2/r
Web Below Are Examples Of Common Configurations:
There are several ways you can wire multiple speakers. Web parallel circuits are the simplest to wire because adding a speaker is as easy as connecting the new speakers (+) positive lead to the (+) speaker wires of the other. Web the series parallel speaker wiring diagram is relatively simple to understand.
Web This Is The Wiring Diagram For Woofers With Dual 2 Ohm Voice Coils.
Web how series or parallel speaker wiring affects amp and speaker power the total amount of power supplied by an amp and the power available to each speaker are affected by the speaker wiring. This will give you a 2 ohm load. Last updated on 6 months by on trends gear.
Wiring Configuration For 2 Speakers In Parallel Two 4 Ohm Speakers = 2 Ohm Load Two 8 Ohm Speakers = 4 Ohm Load Two 16.
A variety of techniques exist for. Web wiring configuration for 2 speakers in series: Web to wire speakers in series, connect the positive terminal of one speaker to the negative terminal of the next speaker, and so on until all the speakers are connected in a chain.
Web An Easy Solution Is To Draw Out A Diagram To Avoid Confusion.
One of the most commonly used methods. 4 x 8 ohm speaker = 8 ohm load; 4 x 16 ohm speaker = 16 ohm load
